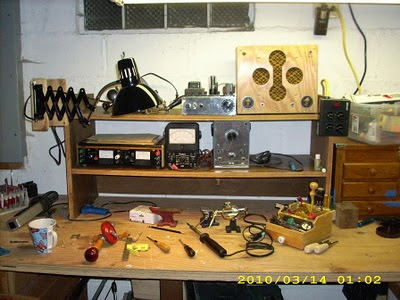

Some interesting stuff on it, too. Across the top, my fancy extending light on a custom (see below) support hides a pair of hand drills, while the far end is occupied by a bench supply (450 VDC/100 mA plus lower B+ and heater supplies) and breadboarded tube utility amplifier ('76 triode driving '42s in push-pull!), both based on Modern Radio Labs plans. Lookie:

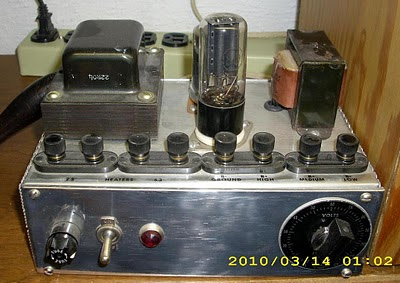

Power Supply -- that's a real type '80! The shiny front panel is what happens if you have a buffing wheel and a lot of time; it's aluminum, which can be...interesting to buff: you have to do it all in one go, especially the final stages.
Amplifier, with salvaged knobs (from an old Thordarson product) found all alone at a hamfest or surplus dealer. The finish on the plywood cabinet is brown shoe polish(!!) followed up with a little wax.Next shelf has a commercial bench supply for tubes -- regulated 0-400 VDC (with current limiting!), ditto 0-100 negative for bias, and heater voltage. Simpson 260 next to it, the Meter You Should Own -- the Triplett 630 has its adherents, too -- one or the other, if you fiddle much with electronics, you'll want a real VOM and they're the definitive ones this side of the water. Both show up used at reasonable prices. Next to the Simpson, an RF signal generator, a hamfest find a couple of years old.
Various toys on the bench top -- an anvil, a Hakko high/low soldering iron at the far left, small hand drill, some drivers, a 4" square, an awl and my nice, big American Beauty 100W iron, plus a recently-modified small-tools holder.
Recently-modified? Glad you asked!
Here's the mod in progress; I was cheating by planing off the pencil marks, using a beat-up miter box as a vise-replacement (you clamp it to the bench and clamp the workpiece to the miter box). The wooden "Gent's Plane" was bought on sale, I think from Lee Valley, and is outstandingly good. (They don't seem to have that brand right now). It's true what they say about wooden planes.

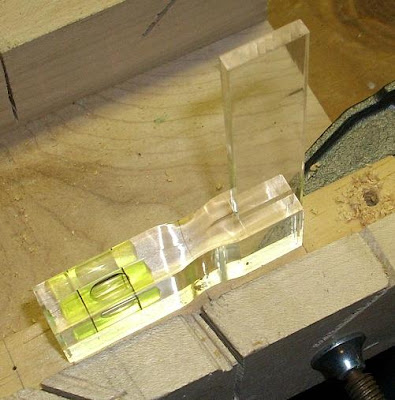

I cheated on drilling the holes vertically, too. I'm very fond of this tiny Plexiglas square for that purpose. But you're wondering what the thing does? Why, this:
It's the driver-holder across the back, holding a couple of awls, a ratcheting multi-driver and two sizes of tweakers -- yes, that's the genuine tech-identifying Green Tweaker at the right.The bracket for the accordion light? Built of scraps, old wood found here and there, but it's got wedged tenons at each end and all manner of done-by-hand chamfering. Did it several years ago, just to see if I could.
I can.It's not a thing of exceeding great beauty but it works. You can just see a bit of the chunky triangular block that's supporting it off the left side of the shelves.
Still to come: some diagonal bracing for the legs and perhaps installing my smaller carpenter's vise. (The bigger one, I'm saving for a sturdy woodwork-specific bench, probably out in the garage). And perhaps a project or two!
