REFLECTOMETER

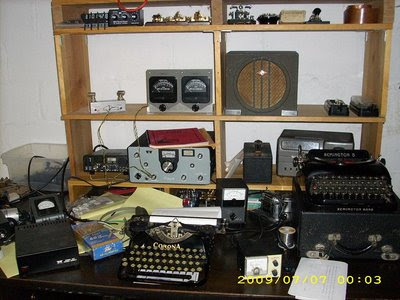

Here it is, in all its glory (helps if you know guys who are removing big, old transmitters!).Those are big meters, probably from an old RCA transmitter. Set-reading pots below them, which I should have got as a matched set and ganged so the meter ranges would (mostly) track. Maybe notched pulleys on the shafts and a toothed belt to link them?

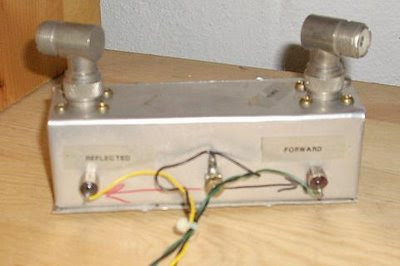

Of course, the meter's got to have a pickup element. This one is just razor-cut PC board and a handful of parts inside a homebrew minibox.

Alas, my hamshack is even more chaotic than ever. ...Give me time! (Yes, the Drake W4 Wattmeter is dead, as they so often are).
